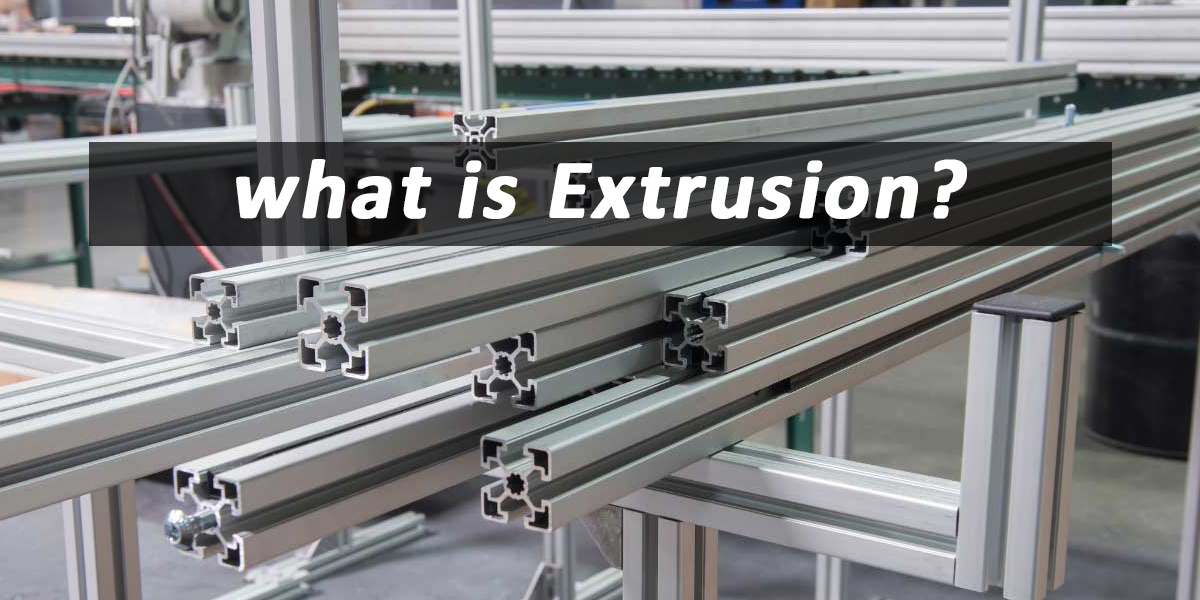

What is Extrusion？
Extrusion is a process used to create parts with a fixed cross-sectional profile by forcing a material, usually metal, through a shaped opening (die) using pressure. The material is typically in a heated, semi-solid state. Aluminum extrusion molding (or aluminum extrusion molding) is placed in the die cavity (or extrusion cylinder) in the aluminum billet to apply strong pressure, forcing the aluminum billet to produce directional plastic deformation, extrusion from the extrusion die hole, so as to obtain the required cross-section shape, size and mechanical properties of the parts or semi-finished products of the plasticity processing method.
Process: In extrusion, a billet (a cylindrical metal piece) is heated until it becomes soft or semi-solid. It is then pushed through a die to form a continuous length of material with a specific cross-sectional shape.
Cross-Sectional Shapes: Extrusion is well-suited for creating parts with consistent cross-sectional profiles, such as rods, bars, tubes, and various structural shapes like channels or angles.
Advantages:
Ability to create complex shapes with uniform cross-sections.
High material utilization and minimal waste.
Suitable for both high and low-volume production.
Limitations:
Limited to parts with consistent cross-sectional profiles.
May not be suitable for creating very intricate or detailed parts.

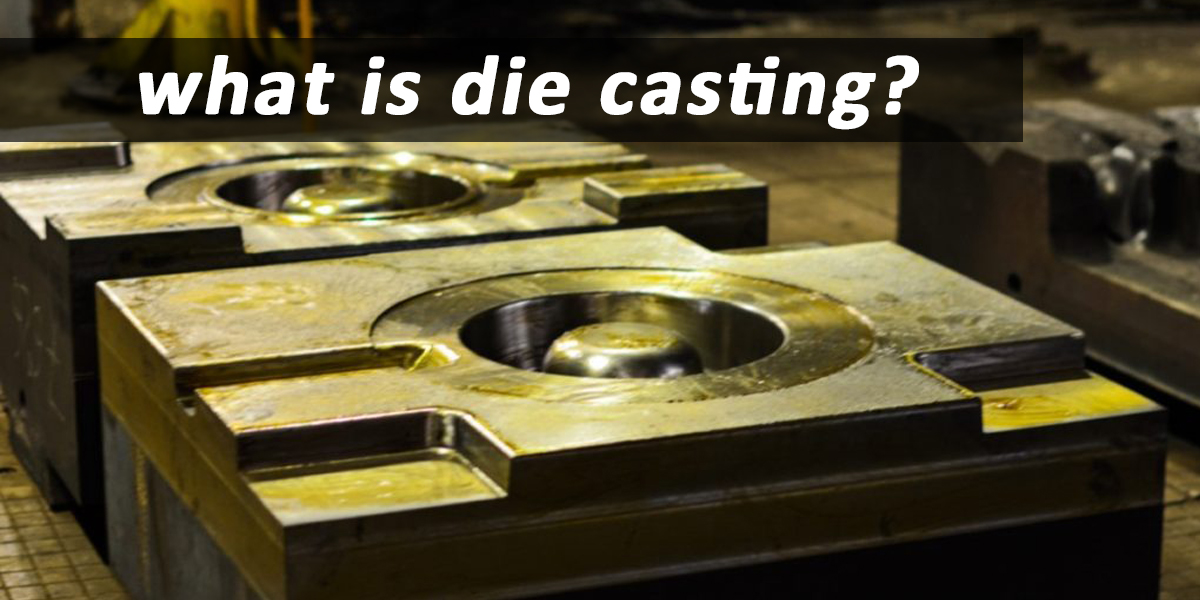

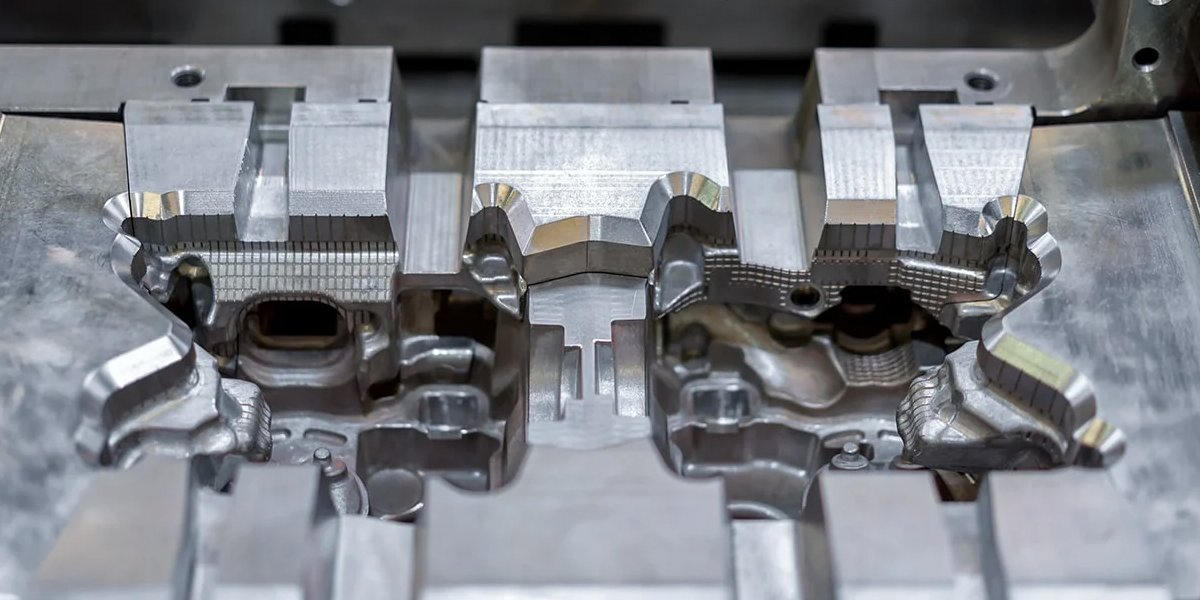

What is Die Casting？
Die casting is a process used to create intricate and detailed parts with a high degree of accuracy.Die casting, that is, pressure casting, is the liquid metal or semi-liquid metal, under the action of high pressure, with high speed filling to the cavity of the die casting mold, and under the pressure of rapid solidification and obtain castings of a method.
Die casting commonly used pressure is from a few megapascals to tens of megapascals, filling start speed in 0.5-70m/s; Die casting melt temperature, aluminum alloy is generally 610-670 ° C, zinc alloy is generally 400-450 ° C, the mold temperature is generally one-third of the temperature of the alloy.
Process: Molten metal is injected into a die cavity using high pressure. The metal cools and solidifies rapidly within the die, after which the die is opened to release the part.
Complex Shapes: Die casting is particularly suitable for producing parts with intricate and complex shapes, often with fine details and thin walls.
Advantages:
Excellent dimensional accuracy and surface finish.
Can produce parts with thin walls and complex features.
High production rates for large quantities.
Limitations:
Initial tooling costs can be high due to the need for complex dies.
Limited to smaller-sized parts due to die size limitations.
Extrusion is ideal for creating parts with consistent cross-sectional profiles and is suitable for both high and low-volume production. Die casting, on the other hand, is best for producing intricate, complex, and detailed parts with excellent dimensional accuracy and surface finish, especially in larger quantities.
How Extrusion work:
Material Preparation: The process begins with preparing the material. For metal extrusion, a billet (a cylindrical piece of metal) is heated to a specific temperature, often below its melting point. For plastic extrusion, plastic pellets or granules are typically used.
Loading the Material: The heated billet or plastic material is loaded into the extrusion machine's chamber or cylinder.
Forcing Through the Die: A hydraulic ram or a screw mechanism pushes the material through the die, which is a specially shaped opening. The die determines the final shape of the extruded material.
Forming the Shape: As the material is pushed through the die, it takes on the shape of the die's opening. The extruded material emerges from the die as a continuous length.
Cooling and Cutting: The extruded material is then cooled, often through water or air cooling systems. After cooling, the material is cut into desired lengths using saws or other cutting tools.
Finishing and Inspection: The extruded parts are further processed as needed, such as through surface treatments or additional machining. Quality inspection is performed to ensure dimensional accuracy and surface finish.
How Die Casting work:
The die casting process involves injecting molten metal into a mold, or die, under high pressure to create complex metal parts. Here's how it works:
Die Preparation: The die casting process begins with preparing the mold, or die. The die consists of two halves that fit together to form the mold cavity.
Molten Metal Preparation: The metal is melted in a furnace at temperatures specific to the type of metal being used.
Injection: Once the molten metal is ready, it is injected into the mold cavity at high pressure using a plunger or piston. This pressure helps ensure that the molten metal fills all the intricate details of the mold.
Solidification: The injected molten metal cools and solidifies rapidly within the mold cavity. The cooling time is crucial to achieve the desired material properties.
Ejection: After solidification, the die halves are separated, and the newly formed part is ejected from the mold. Ejector pins or a mechanical system help release the part from the mold.
Trimming and Finishing: Excess material, known as "flash," is removed from the part using trimming or cutting tools. Additional finishing processes, such as deburring or surface treatment, may be applied.
Some considerations for extrusion：
Material Selection:
Material Properties: Choose materials with properties suitable for the intended application. Consider factors such as strength, flexibility, heat resistance, corrosion resistance, and more.
Material Form: Extrusion can use materials in various forms, including billets, powders, and granules. The material form affects the ease of processing and the final product's properties.
Extrudability: Ensure the chosen material is capable of being extruded without excessive deformation or issues.
Die Design and Tooling:
Die Geometry: Design the die carefully to achieve the desired cross-sectional shape. The die geometry impacts the final product's dimensions, surface finish, and overall quality.
Die Material: Choose a die material that can withstand the temperatures and pressures involved in the extrusion process. Tool steel is commonly used due to its durability.
Die Heating and Cooling: Control the die temperature to ensure consistent extrusion and to prevent material sticking or warping.
Process Control and Parameters:
Temperature Control: Properly control the temperature of the material throughout the extrusion process. Temperature influences material flow, consistency, and quality.
Extrusion Speed: Adjust the extrusion speed to achieve the desired material properties and surface finish. Faster extrusion may lead to more cooling-related issues.
Pressure Control: Maintain consistent pressure during extrusion to achieve uniform material flow and minimize defects.
Ram Speed: Control the speed at which the ram pushes the material through the die. It affects the extrusion rate and material properties.
Die Cooling and Lubrication:
Cooling: Implement die cooling systems to prevent overheating of the die and maintain consistent material flow.
Lubrication: Use lubricants to minimize friction between the material and the die, reducing wear and improving surface finish.
Quality Control:
Dimensional Accuracy: Regularly measure and inspect extruded products to ensure they meet dimensional specifications.
Surface Finish: Monitor and maintain the desired surface finish of the extruded products.
Defect Detection: Implement quality control procedures to identify defects like surface imperfections, cracks, voids, and other inconsistencies.
Post-Extrusion Processes:
Cutting and Sizing: Plan for cutting the extruded material into desired lengths or shapes. This may involve sawing, shearing, or other cutting methods.
Heat Treatment: Consider any necessary heat treatment processes, such as annealing or quenching, to achieve desired material properties.
Some considerations for die casting：
Material Selection:
Material Properties: Choose a material that suits the intended application, considering factors such as mechanical properties, thermal conductivity, corrosion resistance, and cost.
Melting Point: Select a material with a melting point suitable for the die casting process and the available equipment.
Die Design and Tooling:
Die Geometry: Design the die carefully to achieve the desired part shape, including undercuts, thin walls, and intricate features.
Parting Lines and Draft Angles: Incorporate proper parting lines and draft angles to facilitate easy ejection of the part from the die and prevent binding.
Die Venting: Design the die with proper vents to allow trapped air and gases to escape during the injection process.
Die Material: Choose a die material that can withstand the high pressures, temperatures, and wear associated with die casting. Tool steel or other high-strength materials are commonly used.
Cooling Channels: Implement cooling channels within the die to control the temperature of the mold and ensure consistent part quality.
Process Control and Parameters:
Injection Pressure and Speed: Adjust the injection pressure and speed to achieve proper material flow, filling of the mold, and part density.
Injection Temperature: Control the temperature of the molten metal to prevent premature solidification and ensure complete mold filling.
Die Temperature: Maintain the die temperature within a specific range to ensure proper solidification of the part and minimize defects.
Runner and Gate Design:
Runner System: Design the runner system that delivers molten metal to the mold cavity. Optimize runner dimensions to minimize waste and ensure even distribution.
Gate Design: Choose the appropriate gate type (e.g., sprue gate, runner gate, or direct gate) and location for efficient filling of the mold.
Ejection and Part Release:
Ejector System: Design an effective ejector system to release the part from the die without causing damage or distortion.
Ejector Pins: Position ejector pins properly to avoid marring the part surface and ensure uniform ejection.
Quality Control:
Visual Inspection: Regularly inspect die cast parts for surface defects, such as porosity, cracks, and surface imperfections.
Dimensional Accuracy: Measure and assess the parts' dimensions to ensure they meet the required specifications.
X-ray and Defect Detection: Implement techniques like X-ray inspection to identify internal defects that may not be visible on the surface.
Post-Die Casting Processes:
Trimming and Finishing: Plan for removing excess material, such as flash or overflow, from the die cast parts.
Surface Treatment: Consider any required surface treatments, such as polishing, plating, or painting, to achieve the desired appearance and corrosion resistance.
Differences between Extrusion and Die Casting:
Process Type:
Extrusion: Extrusion is a process that involves forcing a material through a die to create a continuous cross-sectional shape. It's used to create parts with consistent cross-sectional profiles, such as rods, tubes, and structural shapes.
Die Casting: Die casting is a process that involves injecting molten metal into a mold under high pressure to create complex metal parts with intricate details. It's used for producing parts with complex geometries.
Part Complexity:
Extrusion: Extrusion is best suited for creating parts with consistent cross-sections and simple geometries.
Die Casting: Die casting is ideal for producing parts with intricate and complex shapes, including thin walls, fine details, and varying thicknesses.
Material State:
Extrusion: The material used in extrusion is usually in a heated, semi-solid state (plastic or metal).
Die Casting: Die casting uses molten metal, which is injected into the mold cavity.
Tooling and Die Design:
Extrusion: Extrusion dies are relatively simpler in design and used to create uniform cross-sectional shapes.
Die Casting: Die casting requires more complex tooling (dies) due to the need to capture intricate part details and features.
Pressure and Cooling:
Extrusion: Extrusion involves lower pressure compared to die casting. Cooling is less critical.
Die Casting: Die casting involves high pressure to fill the mold cavity, and proper cooling is crucial to ensure part solidification and dimensional stability.
Similarities between Extrusion and Die Casting:
Metal Processing:
Both processes are used for metal processing, although extrusion can also be applied to plastics.
Forming Methods:
Both processes involve forming metal into specific shapes using dies or molds.
Manufacturing Efficiency:
Both extrusion and die casting can be used for efficient mass production of parts.
Material Selection:
Both processes allow for a wide range of materials to be used, including various metals and alloys.
Dimensional Accuracy:
Both processes can achieve high dimensional accuracy and tight tolerances, provided proper design and process control are maintained.
Surface Finish:
Both processes can produce parts with good surface finishes, although post-processing might be required for higher-end finishes.
Extrusion Applications:
Building and Construction:
Extrusion is widely used to produce metal and plastic profiles for windows, doors, curtain walls, and structural components in buildings.
Automotive Industry:
Extruded aluminum profiles are used for various parts in automobiles, such as radiator supports, bumper beams, and seat frames.
Aluminum and titanium extrusions are used in aircraft structures for their lightweight and high-strength properties.
Electronics:
Heat sinks, housing components, and electronic enclosures are often made using extrusion due to its design flexibility and thermal conductivity.
Transportation:
Extrusion is used in the manufacturing of railings, handrails, and components for trains and buses.
Extruded aluminum or steel profiles are used in solar panel frames, wind turbine components, and heat exchangers.
Die Casting Applications:
Die casting is commonly used to produce engine components, transmission housings, and various other parts requiring complex shapes.
Electronics:
Die casting is used for manufacturing parts like laptop cases, smartphone frames, and connectors due to its ability to produce intricate shapes.
Medical Devices:
Die casting is employed in the production of medical equipment and devices where high precision and quality are critical.
Industrial machinery components, such as pumps, valves, and machine housings, can be manufactured using die casting for their complex geometries.
Lighting Industry:
Die casting is used to create lighting fixtures, lamp housings, and decorative lighting elements.

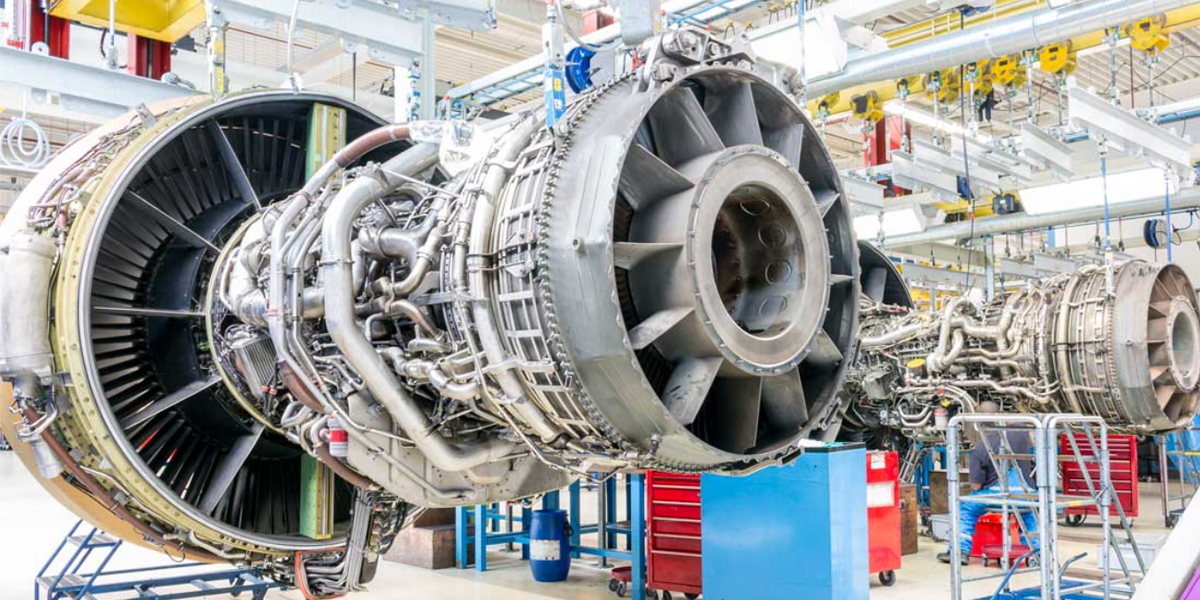

Aviation and Aerospace:
Die casting is used for creating parts in aviation and aerospace industries, including aircraft engine components and structural elements.
Extrusion excels at producing consistent cross-sectional shapes, while die casting is preferred for creating intricate, detailed parts with high precision.
