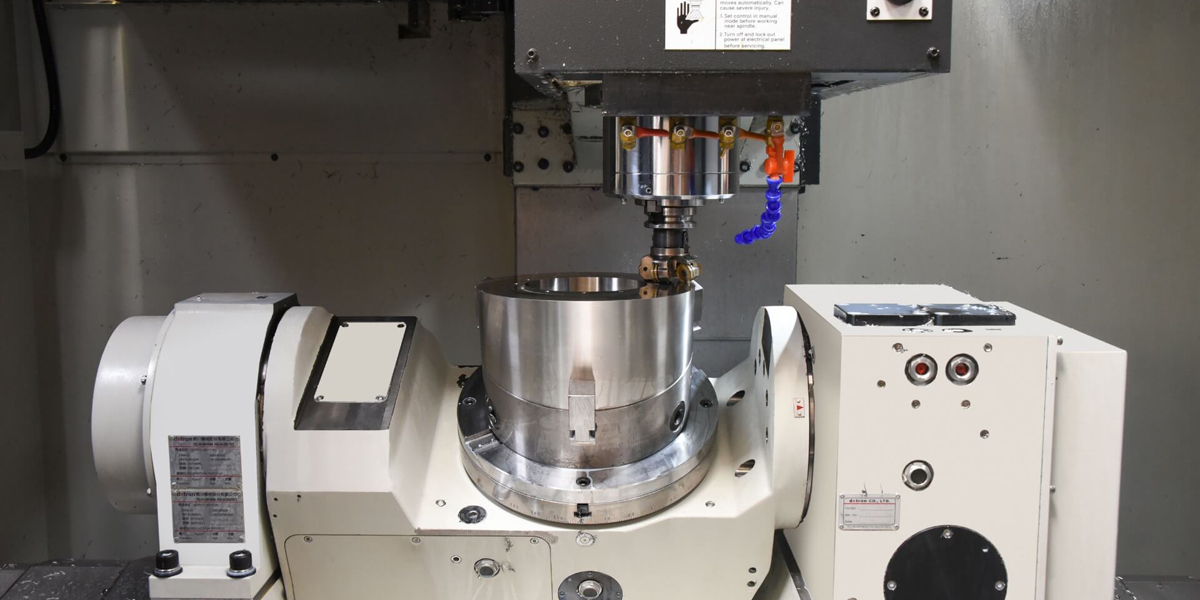

5-axis machining is an important advancement in the field of computer numerical control (CNC) machining, and it offers many advantages and advantages over traditional three-axis machining. It enables greater precision, flexibility and efficiency in the manufacture of complex and highly complex parts.
1.Complex Geometries:
5-axis machining can produce parts with complex geometries that would be challenging or even impossible to manufacture with traditional 3-axis machining. With the ability to rotate cutting tools along multiple axes simultaneously, 5-axis machines can achieve any desired angle and access hard-to-reach areas of the part. This capability enables the production of complex shapes, surfaces, undercuts and complex features with high precision and accuracy.
2.Reduced setup time:
5-axis machining reduces setup time by eliminating the need for multiple setups or repositioning of parts. Because the cutting tool can approach the part from all angles, it can reach multiple sides and surfaces of the workpiece without re-clamping or repositioning. This reduces time spent on fixture changes, alignment and manual adjustments, reducing cycle time and increasing productivity.
3.Improved surface finish and quality:
Simultaneous movement of the cutting tool along multiple axes in 5-axis machining allows the tool to engage the part continuously, resulting in a smoother, more consistent cutting path. This improves surface finish, reduces toolmarks and minimizes vibration, which helps produce higher quality parts. Additionally, eliminating multiple setups reduces the cumulative error that can occur during repositioning, improving dimensional accuracy and part quality.
4.Improved Tool Life and Efficiency:
Five-axis machining enables better tool orientation and optimization of cutting parameters, resulting in reduced tool wear and longer tool life. By approaching the part from an optimal angle, cutting forces can be distributed more evenly, reducing tool deflection and increasing tool life. In addition, 5-axis machining enables more efficient chip evacuation, prevents chip re-cutting and reduces heat buildup, further improving tool life and machining efficiency.
5.Increased manufacturing flexibility:
With 5-axis machining, GD-HUB can produce a wide range of parts and assemblies from simple to highly complex without the need for specialized jigs, fixtures or multiple machines. The ability to machine parts from multiple angles and orientations allows for greater design freedom and flexibility. This versatility is especially beneficial for industries such as aerospace, automotive, medical and mold making, where complex shapes, intricate features and custom parts are common.
6. Cost savings:
While the initial investment for 5-axis machining equipment may be higher than for 3-axis machines, the benefits it offers can save costs in the long run. Reduced setup time, increased tool life and improved efficiency can lead to shorter production cycles, higher yields and lower manufacturing costs per part. Additionally, complex parts can be machined in a single setup without additional machining operations, reducing overall production time and associated costs.
The significance of five-axis machining in CNC machining lies in its ability to manufacture complex geometries, reduce setup time, improve surface finish and quality, increase tool life and efficiency, provide manufacturing flexibility, and save costs relative to 3 and 4-axis machines.

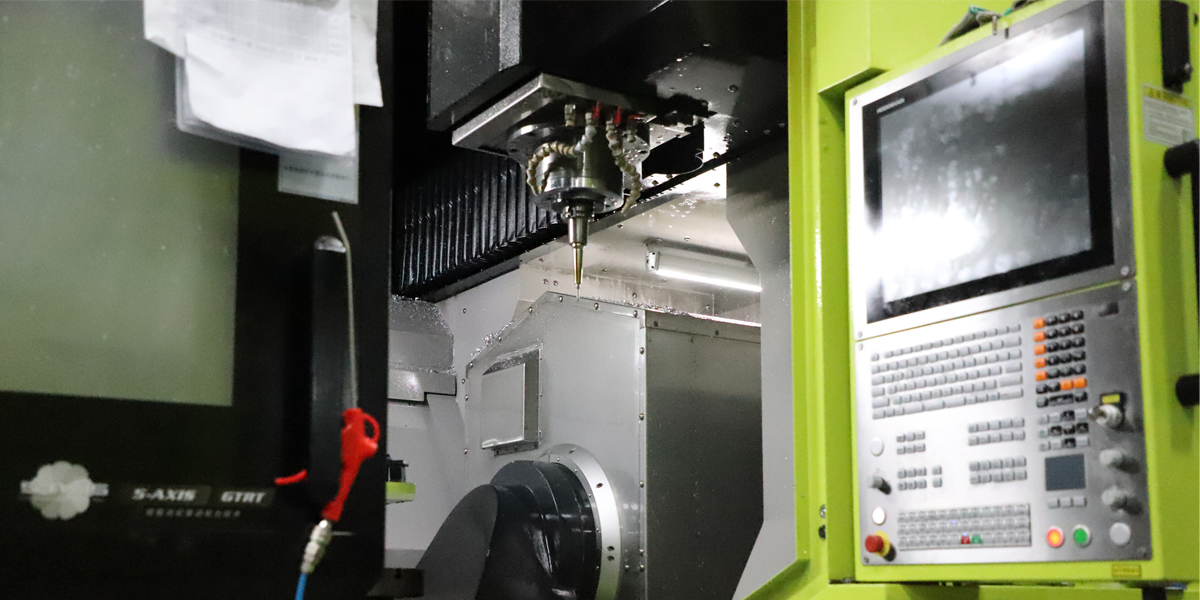

GD-HUB's CNC machining centeris equipped with 20+ five-axis CNC machining machines, which enables us to quickly produce a large number of high-precision, complex parts, meet the needs of various industries and promote the progress of manufacturing capabilities.
