Introduction:
Urethane is a versatile and commonly used material in the vacuum casting process, offering a combination of material properties and ease of use that makes it suitable for various applications across industries.
Urethane casting, an innovative manufacturing process, involves injecting a blend of polyurethane and additive resins into molds made of silicone elastomer. Diverging from traditional injection molding, this technique opts for soft molds, showcasing a unique blend of cost-effectiveness and efficiency. Despite the silicone molds exhibiting wear over time, urethane casting prevails in terms of rapid, economical processes. The absence of hard metal molds accelerates production, while maintaining the high quality of molded products.
Within the polyurethane family, castable polyurethane stands out as a versatile material, capable of achieving a range of mechanical properties—from flexible to rigid materials.
The Intricacies of Urethane Casting
Urethane casting revolves around four pivotal components: the polyol compound, diisocyanate compound, curatives, and additives. The mechanical properties are intricately linked to the formulation of the prepolymer resin and the choice of curatives. Slip additives, including acid amides, erucamide, and oleamide, address concerns related to the coefficient of friction (COF), ensuring a smooth interaction between plastic materials.
The polyurethane reaction involves a sophisticated process, forming a polymer chain from the reaction of polyol and diisocyanate components. This results in a molecule with a reactive alcohol on one end and a reactive isocyanate on the other, leading to the formation of a long-chained polyurethane.
Urethane Casting Process Unveiled
Urethane casting unfolds as a streamlined process, encompassing pattern development, silicone mixing, mold creation, and resin pouring.
Developing the Master Pattern: Utilizing cutting-edge techniques such as 3D printing or CNC machining, a CAD model guides the creation of the master pattern. Attention is given to overcoming molding and removal challenges.
Choosing and Mixing the Silicone: Silicone formulation, involving condensation and addition curing, plays a pivotal role. Selection depends on application specifics, such as hardness and complexity.

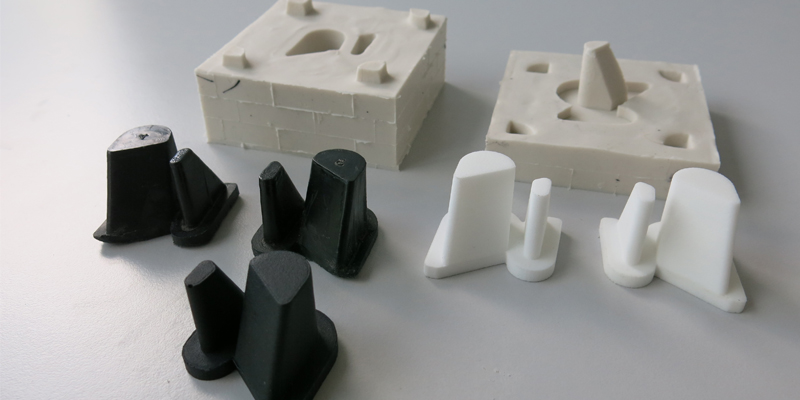

Creating the Silicone Mold: Mold preparation involves various methods like book mold, two-part mold, or skin mold, each tailored to the desired outcome.
Open Silicone Molds: Basic yet widely used, open silicone molds prove ideal for DIY enthusiasts. The process involves meticulous pattern inspection, silicone pouring, and curing.
Finalizing the Urethane Cast: Selecting suitable urethane resins and curatives, mixing, degassing, and pouring mark the casting phase. This culminates in the splitting of silicone molds and cast removal.
Secondary Operations After Casting: Post-casting operations ensure smooth surfaces, with attention to gates, vents, and flashings. Machining requires a delicate touch to prevent melting.
Delving into the Mechanical Properties of Polyurethane
Urethane castings boast distinctive properties, setting them apart from metals and other plastics.
Abrasion Resistance: Addressing sliding and impingement abrasion, urethane casts prove ideal for applications like wheels and rollers.
Impact Resistance: The resilience of urethanes allows for elastic deformation, absorbing impact energy.
Hardness: Shore hardness measures the relative resistance to surface deformation, with urethanes categorized under Shore A and D scales.
Tensile and Flexural Strength: Urethane casts, enhanced with composite materials, meet strength requirements for diverse applications.
Understanding Urethane Casting Materials
A deep dive into the components shaping urethane resins—polyols, diisocyanates, and curatives—provides insight into the versatility of this material.
The Polyol: Polyether and polyester types, along with specialty polyols, influence properties such as resilience, abrasion resistance, and chemical resistance.
The Diisocyanate: Aliphatic and aromatic diisocyanates offer distinct characteristics, impacting color stability and application suitability.
Curatives: Hydroxyls and amines, as chain extenders, contribute to the solid or semi-solid elastomer formation.
Unveiling the Advantages of Urethane Casting
Urethane casting shines in comparison to die casting and injection molding, presenting benefits like low investment costs, rapid production runs, ease of processing, and a wide range of physical properties.
Low Investment Cost: Utilizing soft molds, particularly silicone, significantly reduces upfront costs.
Quick Production Runs: Silicone molds expedite the production timeline, making it ideal for pre-production trials and modifications.
Ease of Processing: Simple equipment requirements render urethane casting accessible for DIY projects.
Wide Range of Physical Properties: Tailoring formulations allows for a broad spectrum of properties to suit diverse applications.
Exploring Applications of Urethane Casting
The versatility of urethane casting finds expression in various industries and applications.
Product Design: Ideal for prototyping due to its customizable properties.
Wheels and Rollers: Urethane's toughness and impingement resistance make it a popular choice for caster wheels, pulleys, and guide rollers.
Automotive Vehicles: Shock and vibration resistance, coupled with high-temperature endurance, positions urethane casting as a viable alternative to steel.
Shock Absorbers: Urethane's ability to absorb vibrations makes it suitable for shock absorbers and dampers.
Medical Device Components: FDA-compliant formulations enable the production of unique medical device components in low volumes.
Consumer Products: Urethane castings feature in a myriad of consumer goods, including shoe soles, sports equipment, and electronics casings.
Conclusion: Unlocking Urethane Casting's Potential
Urethane casting emerges as a dynamic manufacturing process, catering to diverse industries through its adaptability and cost-effectiveness. From intricate product design to robust automotive components, its applications span a wide spectrum, driving innovation and efficiency.
What does the GD-HUB Vacuum Casting Service include?
GD-HUB's vacuum casting services typically provide a complete solution for the production of high-quality prototypes and low-volume parts.
1)Consulting and design assistance:
Collaborative discussions with customers to understand their design requirements and objectives.
Assistance in optimising the vacuum casting process design, considering material selection and production feasibility.
2)Master mould making:
Production of master models or prototypes based on the customer's design, using materials such as wax, plastic or metal.
3)Mould making:
Moulds are created around the master model using flexible materials such as silicone. The quality of the mould is critical to achieving accurate reproduction.
4)Material Selection:
You are guided through the selection of the most suitable casting material (usually polyurethane resin) based on the properties required for the final part.
Execution of the vacuum casting process, which consists of placing the mould in a vacuum chamber and removing the air so that the liquid casting material completely fills the mould and makes a perfect finished product.
Curing the casting material to solidify the part inside the mould.
Post-casting processes to improve surface finish, including grinding, polishing or other finishing techniques.
7)Quality Control:
GD-HUB will perform rigorous and thorough inspections of the finished part to ensure that it meets the specified design requirements and quality standards.
8)Customisation and material simulation:
Ability to customise parts to meet specific customer needs, including different material properties and surface finishes.
Simulation of the appearance and properties of the final production material to closely match the intended end product.
9)Low Volume Production:
Efficient production of small to medium-sized parts, making small lot production cost-effective.
10)Quick Turnaround:
Accelerates production time for rapid prototyping and faster product development cycles.
11)Packaging and Delivery:
Proper packaging to ensure safe delivery of finished parts to customers.
12)Customer Support:
GD-HUB provides ongoing support and communication with customers throughout the process to resolve any questions or issues.
It is important that you clearly communicate your specific project requirements to GD-HUB to ensure that the services we provide meet your needs.
Material Extensions for Vacuum Casting:
Polyurethane Resins
Silicone Rubber Molds
Wax
Transparent Resins
Polyethylene & Polypropylene-Like Resins
Rubber-Like Resins
High-Temperature Resins
Fire-Resistant Resins
Fiber-Reinforced Composites
GD-HUB's vacuum casting services encompass consulting and design assistance, master mold making, mold making, material selection, vacuum casting process execution, curing and polishing, quality control, customization, low-volume production, quick turnaround, packaging and delivery, and ongoing customer support.The goal is to provide a complete solution for high-quality prototypes and low-volume parts tailored to specific customer needs.
Is It For You?
Still uncertain if urethane casting is the right fit? GD-HUB suggests comparing different casting and molding options, like plastic injection molding, to find the perfect match for your project.
Consider your unique needs and make an informed decision with our expert insights.
