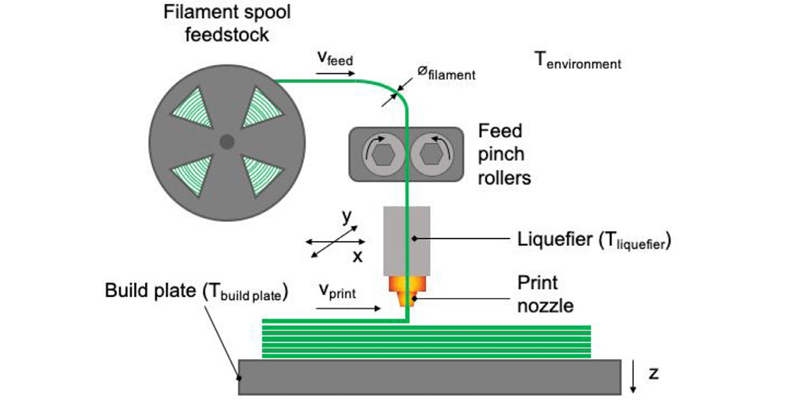

Fused Filament Fabrication (FFF) is a 3D printing technology that combines traditional fused filament fabrication (FFF) methods with metal sintering. The basics of this technology are similar to traditional plastic FFF, but it uses special filaments containing metal powders instead of pure plastic.
Process Flow of Fused Filament Fabrication:
Print formation: Using special filaments containing metal powders and adhesives, the desired 3D shape is printed in layers by FFF technology.
Binder Removal: After printing, the binder is removed from the part through a heat treatment or chemical process, leaving the metal powder behind.
Sintering: After the adhesive is removed, the part is sintered in a high-temperature oven. The high temperatures cause the metal powders to melt and bond together to form a solid metal part.
Fused Filament Fabrication (FFF) as an innovative 3D printing technology brings multiple benefits:
1. Cost Effectiveness
Rapid Prototyping: Allows prototypes to be quickly fabricated for testing and validating designs, accelerating the product development process supporting rapid iteration and improvement.
Time Savings: Compared to traditional manufacturing processes, 3D printing reduces the time from design to finished product, especially in complex or low volume production.
Reduced tooling and moulding costs: For the production of complex parts, expensive custom tooling or moulds are not required.
Suitable for small batch production: for small batches or customised products, this method is more economical than mass manufacturing.
Simplifies the production process: integrating the production process of multiple components reduces the need for assembly.
2. Performance Advantages
Improved component performance: Optimised design improves the strength and durability of components.
Lightweighting: Reduced material usage through optimised design results in lighter components, particularly suitable for aerospace and other fields.
3. Accuracy benefits
High resolution: Fused Filament Fabrication (FFF) enables high resolution and level of detail, which is particularly important for manufacturing precision parts.
Complex geometries: The ability to manufacture complex geometries that are difficult or impossible to achieve with traditional methods, improving the precision and flexibility of designs.
Uniform Material Properties: Uniform distribution of material during the 3D printing process helps to maintain consistency and repeatability of the part, thus improving overall accuracy.
Customised manufacturing: Suitable for the production of highly customised parts to meet specific size and specification requirements.
4. Environmental Benefits
Sustainability: Reduces material waste and energy consumption, making it more environmentally friendly than traditional manufacturing methods.
Support for circular economy: possible utilisation of renewable materials or materials that are easier to recycle.
Application Versatility
Wide range of material options: A wide range of metal materials can be used, including high-value metals.
Multi-industry applications: Aerospace, automotive, medical, high-tech manufacturing and other industries can benefit.
Fused Filament Fabrication (FFF)technology offers significant benefits in terms of precision and rapid iteration, which is particularly important for modern manufacturing.
Fused Filament Fabrication (FFF) technology has found specific application areas in several industries due to its unique benefits:
Aerospace: In the manufacture of aircraft and spacecraft, this technology is used to produce complex lightweight structural components, engine parts and customised cabin trim.
Automotive: for the manufacture of lightweight body structures, customised interior trims, engine components and complex parts for prototyping.
Medical devices: for the manufacture of customised surgical implants (e.g. joint replacements), dental implants, and customised tools for surgical procedures.
High-tech manufacturing: for the production of high-precision electronic parts, robotic components, and other precision equipment.
Jewellery and Fine Art: Fused Filament Fabrication (FFF) is used to create intricate jewellery designs and works of art, especially when precious metals are used.
Energy industry: In the manufacture of oil and gas, and renewable energy equipment, for high performance components such as turbine blades and filters.
Construction: although this is an emerging field, the technology can be used to manufacture complex building components such as customised connectors and decorative elements.
Defence and military: for the manufacture of lightweight and high-strength weapon system components, drone assemblies and other military equipment.
Education and Research: In higher education and research institutions to support research and education in advanced manufacturing technologies.
Consumer Goods: In high-end consumer goods manufacturing for complex metal parts and customised products such as watches and other precision devices.
The variety of metal materials used in filament fabrication (FFF) technology is increasing, and much attention is being paid to the development process and future prospects of the technology.
List of metals that can be used in Fused Filament Fabrication (FFF)technology
Stainless steel: Used in a wide range of applications due to its strength and corrosion resistance.
Titanium alloys: particularly suitable for aerospace and medical devices due to their lightness, strength and biocompatibility.
Aluminium alloys: lightweight and with good mechanical properties, suitable for the aerospace and automotive industries.
Cobalt-chromium alloys: commonly used for high wear resistance and high temperature applications such as aerospace engine components.
Copper alloys: good electrical and thermal conductivity, suitable for electronic and electrical applications.
Nickel-based alloys: maintain strength and corrosion resistance in high temperature environments, suitable for high temperature applications.
Precious metals (e.g. gold, silver): for specific high value applications such as jewellery making.
Development process of Fused Filament Fabrication (FFF)
Fused Filament Fabrication (FFF) technology is an innovative technology developed in recent years. This technology is based on the traditional plastic FFF (or FDM, Fused Deposition Modelling) technology.
History of Plastic FFF/FDM: The history of plastic FFF or FDM technology can be traced back to the 1980's. In 1989, Scott Crump invented FDM technology and later founded Stratasys.
Development of metal 3D printing technology: Based on the maturity of plastic FFF technology, metal 3D printing technologies (such as direct metal laser sintering and selective laser melting) have gradually developed since the early 2000s.
Emergence of Fused Filament Fabrication (FFF): The idea of combining metal printing with FFF has only started to be realised within the last decade. The development of this technology has mainly benefited from the development of new materials, in particular specialised filaments containing metal powders.
Commercialisation and application: although the concept of this technology emerged at the beginning of the 21st century, it has only begun to be progressively commercialised and applied in real production in the last decade. During this phase, many companies and research organisations started to explore the potential of Fused Filament Fabrication (FFF) and progressively improved the technology.
Early stages: Initially, 3D printing was mainly used for plastics and resins, with metal printing technology developing more slowly in the early stages.
Technological advances: With the development of metal 3D printing technologies such as powder bed fusion (PBF), more possibilities for metals began to be explored.
The emergence of Fused Filament Fabrication (FFF): Combining traditional plastic FFF technology with metal printing created a new 3D printing method for manufacturing complex metal parts.
Future Outlook
Technological innovations: more innovations are expected, such as increased print speeds, improved print quality, and an expanded range of available materials.
Cost reductions: equipment and material costs are expected to decrease as the technology matures and production is scaled up.
Broader applications: Metal FFF technology will find applications in more industries, especially in customisation and high performance component manufacturing.
Integration and automation: Integration of more automation and smart manufacturing technologies to improve efficiency and quality control.
Sustainability: with increased awareness of environmental protection, this technology is likely to focus more on recycling and eco-friendly production processes.
In summary, Fused Filament Fabrication (FFF) has been around for about a decade as a standalone 3D printing technology. The technology is still in a relatively early stage of development, but has shown great potential and application promise. As the technology continues to progress and mature, more innovations and applications are likely to emerge in the coming years.
