Vacuum casting, also called urethane casting, is a manufacturing process used to create small quantities of high-quality plastic or metal parts. It involves creating a mould of the desired part and then injecting liquid plastic or metal into the mould under a vacuum. This creates a uniform and detailed part with an excellent surface finish and dimensional accuracy.
Let’s see what are the fundamentals of vacuum casting, its applications and its limitations.
Vacuum casting is a manufacturing process wherein a liquid material is poured into a mold and left to solidify. In this method, a vacuum is employed to eliminate air from the mold, ensuring the final object conforms accurately to the intended shape.
This technique finds frequent use in casting plastic and rubber parts. Often applied in prototype projects or small-scale production, vacuum casting proves faster and more cost-effective compared to methods like injection molding.
Its primary advantage lies in delivering high precision and consistency, making it ideal for applications where exact dimensions are crucial. Moreover, vacuum casting accommodates the creation of intricate designs. However, it's not universally suitable; materials sensitive to heat or pressure cannot be cast using this method.
Vacuum casting, similar to traditional injection molding, requires a mold tool featuring a cavity shaped to match the final object. However, unlike injection molding, vacuum casting utilizes silicone molds rather than rigid metal ones.
The initial step in the process involves creating a 3D model of the desired form, adhering to principles akin to injection molding for optimal results. Various design software such as AutoCAD, Solidworks, or CATIA can be employed for this purpose.
Subsequently, the 3D model is utilized to generate a high-quality master model. Previously, CNC machining was the norm for their creation, but now, additive manufacturing can swiftly accomplish this task. The emergence of 3D printing technology has rendered the role of pattern makers more practical and cost-effective. Alternatively, a cast model that effectively serves as the master pattern can be employed without any further adjustments.
After creating the master pattern, the next step involves casting the mold. The master pattern, inclusive of casting cores, inserts, and gates, is suspended within a casting box. This assembly is then positioned in a vacuum casting chamber, and liquid silicone is poured around it, ensuring all intricate details are filled. Subsequently, the setup is placed in a preheated oven at 40°C for 8-16 hours for the curing process. The curing time may vary depending on the dimensions of the silicone mold.

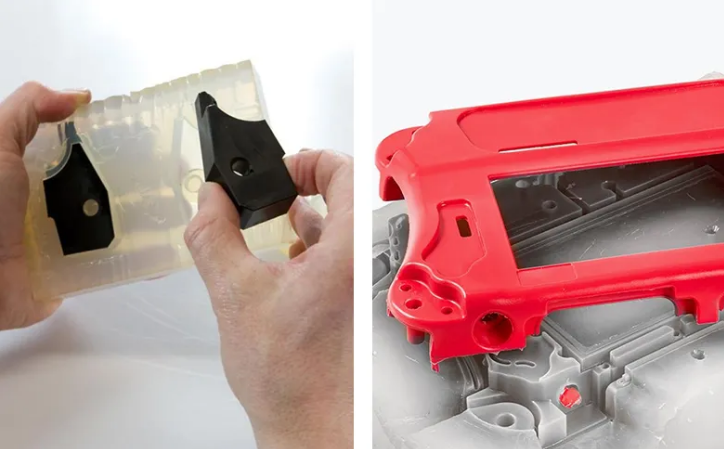

Once the silicone has dried and set, the box and risers are removed. To complete the process, delicately splitting the mold with a knife reveals the negative cavity of the component. Careful selection and application of a mold-release agent help prevent stickiness and surface imperfections.
Before mixing, polyurethane resins used in casting are typically heated to around 40°C. To begin, a two-component casting resin and desired colorants are precisely combined and poured into a container. Subsequently, the mold is repositioned, and the pouring gates are connected to the mixing and pouring vessel.
During the auto-pouring process, vacuum casting resins and color pigments are thoroughly mixed and deaerated for 50-60 seconds in a vacuum. Then, a vacuum is created in the mold, and the resin is poured. Vacuum technology aids in eliminating air pockets inside the tool, allowing gravity to efficiently fill the mold.

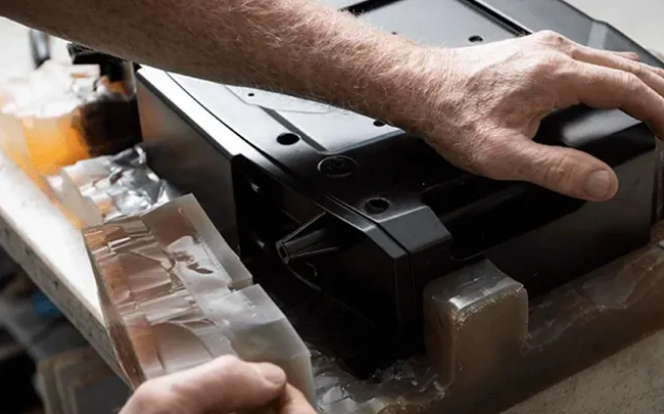

Following the pouring of resin into the mold, it undergoes heating in a curing room until it solidifies. Once hardened, the cast can be extracted from the mold. After completion, the gates and risers are removed, and any final finishing touches are applied.
Vacuum casting boasts versatility across diverse industries, offering a myriad of applications owing to its capacity to craft intricate and precise components, ensuring high-quality outcomes.
1. Medical Implants: Widely utilized in the medical field, vacuum casting manufactures complex parts, including implants and prosthetics.
2. Automotive Industry: Vacuum casting is a favored method for producing detailed automotive parts such as intake manifolds, exhaust systems, and body panels, leveraging its superior accuracy and repeatability.
3. Food Industry: Often employed in crafting intricate parts for food production, vacuum casting aids in creating molds, packaging components, and other complex shapes crucial in food-related operations.
4. Aerospace Components: This process serves in fabricating precision aerospace components like air ducts, fuel systems, and sections of airplane exteriors, benefiting from its exceptional accuracy and capability to create intricate details.
5. Consumer Goods: Vacuum casting is instrumental in manufacturing complex consumer goods like toys and sporting equipment, delivering highly precise parts ideal for consumer use.
The vacuum casting process finds widespread usage across industries, particularly in low-volume production of prototypes or production parts. This production method offers numerous advantages compared to other rapid prototyping and manufacturing techniques.
1. Fine Details: Vacuum casting excels in producing parts with intricate details. Using a 3D printed master model to create the mold allows for intricate details from the initial design to be accurately replicated in the final cast.
2. Cost Efficiency: Another advantage lies in its relatively low cost. Vacuum casting proves more economical than alternative rapid prototyping methods like CNC machining. It requires only a few hours to produce a mold, which can be reused multiple times, whereas CNC machining involves expensive tools and materials.
3. Dimensional Accuracy: The vacuum casting process yields parts with outstanding dimensional accuracy. Parts produced via vacuum casting fit together seamlessly without requiring additional post-processing steps like sanding or drilling.
4. Flexibility: This method offers high design flexibility as nearly any geometry can be created using 3D printing. Consequently, vacuum casting enables the production of parts that might be impractical or impossible to produce using other methods.
Despite its various advantages, the vacuum casting process does have several limitations that should be taken into account before initiating a project:
1. Material Suitability: This process is only compatible with specific materials, limiting the range of materials available for use.
2. Mold Impact on Prototype Quality: The quality of the prototype may be influenced by the type of mold utilized, potentially affecting the final output.
3. Shrinkage Effects: Shrinkage during the process might lead to parts becoming either too thin or too thick, impacting the desired dimensions.
4. Production Speed: The process is relatively slow, making it less suitable for large-scale production runs that demand quicker manufacturing methods.
5. Unsuitability for High-Temperature Applications: Vacuum casting is not well-suited for applications requiring high-temperature resistance, limiting its use in certain scenarios.
