In recent years, the manufacturing landscape has been reshaped by the transformative impacts of CNC machining processes. Among these, CNC turning has emerged as a cornerstone for numerous manufacturing companies, offering benefits such as precision, cost-effectiveness, and exceptional versatility. In this comprehensive guide, we will delve into the intricate details of CNC turning, its operational intricacies, and the myriad advantages it brings to businesses.
Unveiling the Essence of CNC Turning

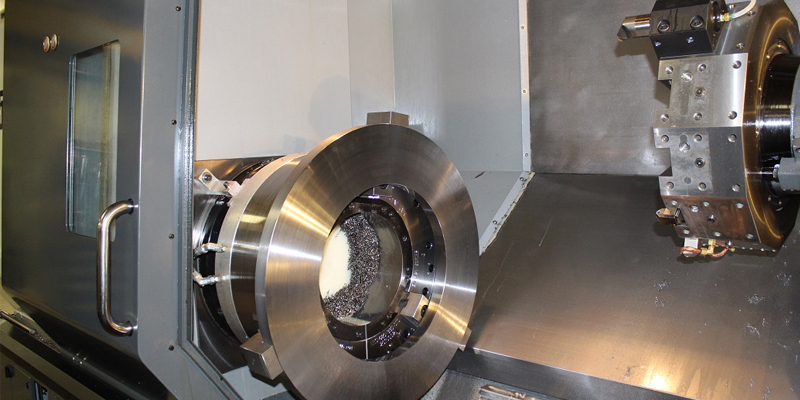

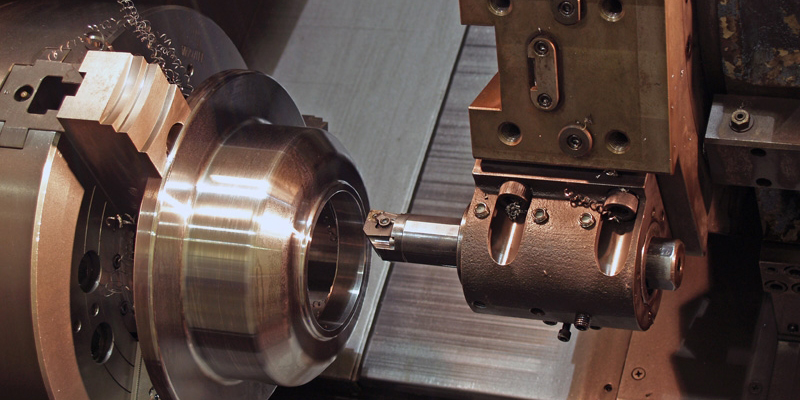

CNC turning stands as a pinnacle in efficient manufacturing processes, operating on the fundamental principle of the CNC lathe machine. This subtractive machining technique utilizes specialized cutting tools to meticulously remove material from a rotating workpiece held securely in a chuck. The CNC turning center, stationed in a fixed position, orchestrates the movements of cutting tools with precision, sculpting the workpiece according to meticulously programmed specifications.
Diverse CNC turning centers exist, each tailored to specific manufacturing needs. These encompass vertical turning centers, horizontal turning centers, vertical lathes, and horizontal lathes, distinguished by variations in power, speed capabilities, tooling options, and outer diameter limitations.
Navigating the Intricacies of the CNC Turning Process
While the concept of CNC turning may seem straightforward, achieving high-quality results necessitates a nuanced understanding of the process.
1. CAD Design:
Conceptualization: Begin with a clear understanding of the part's purpose and design requirements.
CAD Software: Use Computer-Aided Design (CAD) software to create a detailed 3D model of the part.
Material Selection: Choose the material based on the part's function and manufacturing feasibility.
2. CAM Programming:
CAM Software: Transfer the CAD model to Computer-Aided Manufacturing (CAM) software.
Toolpath Generation: CAM software generates toolpaths based on the design, specifying the route the cutting tool will take.
Tool Selection: Choose appropriate cutting tools based on the material and design intricacies.
3. CNC Programming:
G-code Generation: The CAM software translates the toolpaths into G-code, a language understood by CNC machines.
Toolpath Optimization: Fine-tune the toolpaths for efficiency, minimizing tool changes and travel distances.
Speeds and Feeds: Determine spindle speeds and feed rates based on material and tool characteristics.
4. CNC Lathe Setup:
Workpiece Mounting: Secure the raw material in the lathe chuck or collet.
Tool Installation: Install and properly align the selected cutting tools in the tool turret.
Work and Tool Offsets: Set offsets for the workpiece and tools, ensuring precise machining.
5. CNC Machine Calibration:
Home Position: Establish the home position for the machine.
Probe Calibration: Calibrate the tool and workpiece probing systems for accurate measurements.
6. Testing and Simulation:
Dry Run: Before actual machining, perform a dry run without material to ensure the program's accuracy.
Simulation: Use CNC simulation software to visualize the machining process and detect any potential issues.
7. Manufacturing:
Loading the Program: Load the finalized G-code into the CNC machine.
Tool Change: The machine automatically changes tools as specified in the program.
Monitoring: Continuously monitor the machining process for tool wear, material conditions, and any anomalies.
8. Quality Control:
In-Process Inspection: Regularly measure critical dimensions during machining to ensure they meet specifications.
Adjustments: Make any necessary adjustments to tool offsets or machining parameters for quality control.
9. Post-Processing:
Deburring: Remove any sharp edges or burrs from the machined part.
Surface Finish: Depending on requirements, additional processes like polishing may be applied.
10. Documentation:
Record Keeping: Document the CNC program, setup details, and any adjustments made during manufacturing for future reference.
Considerations:
Material Hardness: Different materials require different cutting speeds and feeds.
Coolant Usage: Use coolant to dissipate heat and prolong tool life.
Tool Wear: Regularly inspect and replace tools to maintain quality.
Chip Management: Proper chip evacuation is crucial for a smooth operation.
Tolerances: Ensure the CNC program and machine settings meet design tolerances.
Urning speed and feed rate are crucial parameters in CNC turning, influencing the efficiency and quality of the machining process.
1. Turning Speed (Spindle Speed):
Definition: Turning speed, often referred to as spindle speed, is the rotational speed of the lathe spindle and workpiece, measured in revolutions per minute (RPM).
Calculation: The turning speed is calculated using the formula:
Factors Influencing Speed:
Material: Different materials have different recommended cutting speeds.
Tool Material: Carbide tools can withstand higher speeds than high-speed steel tools.
Cutting Operation: Roughing operations typically require lower speeds than finishing operations.
2. Feed Rate:
Definition: Feed rate is the rate at which the cutting tool advances along the workpiece, measured in millimeters per revolution (mm/rev) or millimeters per minute (mm/min).
Calculation: The feed rate is calculated using the formula: Feed Rate (mm/min)=Cutting Speed (m/min)×Number of Inserts×Chip Load per Insert (mm)
Feed Rate (mm/min)=Cutting Speed (m/min)×Number of Inserts×Chip Load per Insert (mm).
Factors Influencing Feed Rate:
Material: Harder materials often require lower feed rates.
Tool Geometry: Different tools may have different recommended feed rates.
Depth of Cut: Deeper cuts may require lower feed rates to avoid excessive tool wear.
Considerations:
Balancing Speed and Feed: Optimal cutting conditions balance speed and feed for efficient material removal without compromising tool life.
Chip Formation: Proper feed rates help in the formation of manageable chips, preventing chip evacuation issues.
Tool Life: High speeds and feeds can increase material removal rates but may also reduce tool life. Balancing these factors is crucial.
Surface Finish: Lower feed rates in finishing operations can improve surface finish quality.
Harnessing the Benefits of CNC Turning for Business Advancement
CNC turning offers a myriad of advantages that significantly contribute to productivity enhancement, cost reduction, and precision attainment. Here's a detailed exploration of these benefits:
1. Flexibility:
CNC turning machines offer adaptability through various sizes of turning centers, facilitating adjustments for diverse manufacturing tasks.
2. Accuracy:
Precise measurements are guaranteed through preprogrammed CNC turning centers, mitigating the risk of human errors.
3. Versatility:
CNC lathe machines exhibit versatility by seamlessly working with diverse materials, including metals, plastics, glass, and composites.
4. Faster Results:
Reduced chances of errors in CNC turning operations lead to accelerated production without compromising the quality of the final product.
5. Excellent Tolerance:
CNC turning delivers high tolerance levels and exceptional surface finishes, making it ideal for components with precision rotational features.
6. Cost-Effective:
The scalability and efficiency improvement brought about by CNC turning contribute to cost-effectiveness, reducing material wastage in the manufacturing process.
7. Safety:
The automated nature of CNC turning operations minimizes labor requirements, with stringent safety measures in place, including semi-closed or fully covered lathe bodies.
8. No High Skill Requirements:
CNC turning operations do not demand highly specialized operators, thereby reducing production costs associated with labor.
Explore Materials Compatible with CNC Turning
CNC turning is compatible with a wide range of materials, focusing primarily on metals such as cast iron, alloy steel, and stainless steel. In addition, CNC turning is skilled in working with materials such as glass, wood, plastics, wax, composites and ceramics. The choice of turning centre depends on specific requirements such as feed rate and turning speed.
Some of these common CNC turning materials include.
Cast iron
Alloy steel
Stainless steel Carbon steel
Carbon steel
Zinc
Aluminium
Magnesium
Copper
Other compatible materials include:
Glass
Wood
Plastic
Wax
Composites
Ceramics
Assessing Project Suitability for CNC Turning
Determining the suitability of CNC turning for your project involves a thorough evaluation of factors such as long-term or short-term part volumes and the outer diameter of the parts. CNC turning proves particularly effective for prototyping and short-run volumes.
Here are some factors to consider for your CNC turning project:
What is the number of parts needed in the long or short term?
(CNC turning centres are often well suited for prototyping and short-term production.)
What are the part sizes?
(The cost of turning a part depends on the quantity.)
Conclusion
CNC turning stands as a reliable and versatile manufacturing process, harmonizing cost-effectiveness with high-quality results. Precision-turned parts achieved through CNC turning provide a competitive edge in the marketplace. For unparalleled CNC machining services, GD-HUB emerges as the ideal manufacturing partner, offering tailored solutions to meet diverse project requirements.
Reach out to GD-HUB today for a collaborative approach to machining excellence.
