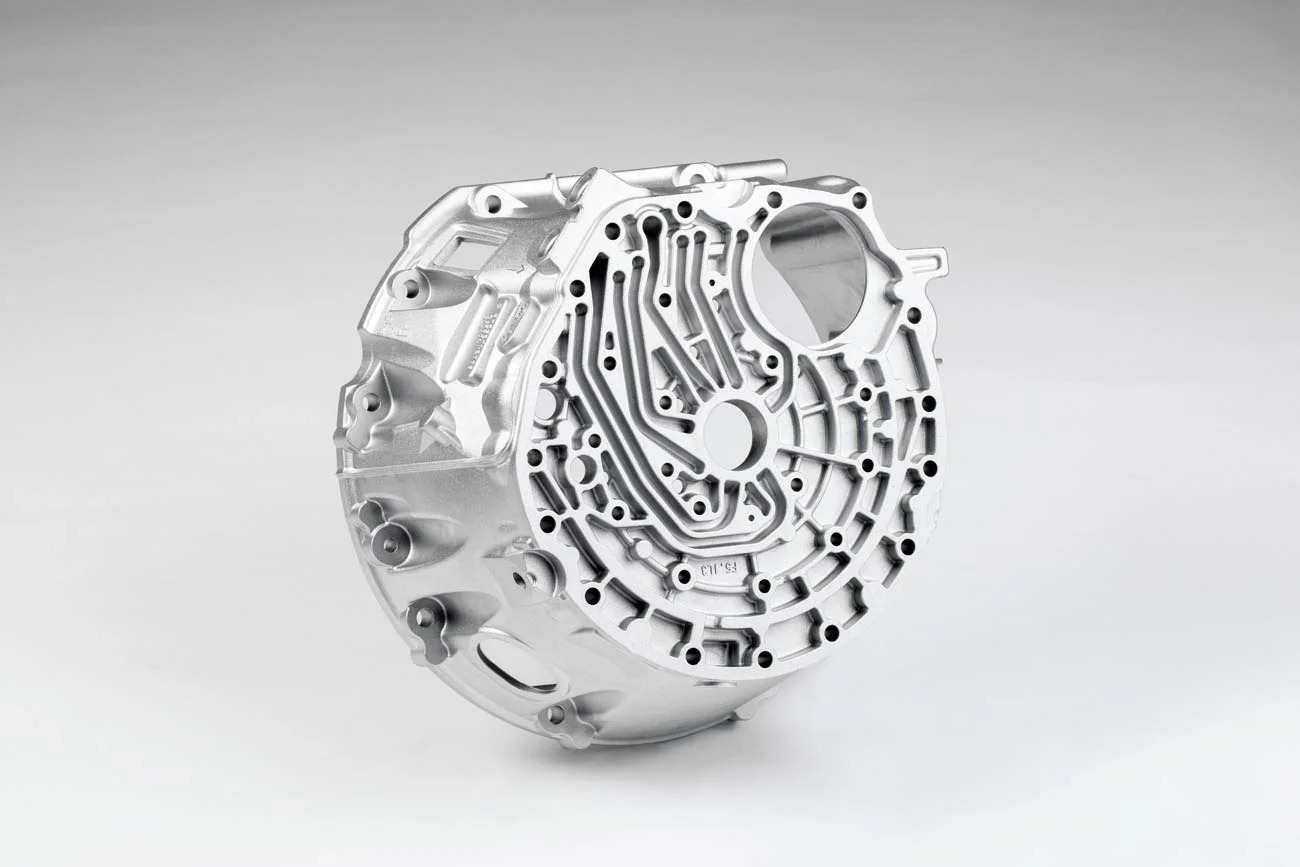

Shrinkage in cast metals is sinagretzer. In contrast to water, metals shrink when they solidify from the liquid state, causing a significant decrease in size and volume. This process is crucial in the automotive industry, where accuracy and durability are of utmost importance. Casting is a common manufacturing process for various components like engine blocks, transmission housings, and suspension parts, so it is vital to know and control shrinkage to ensure high-quality production.
These defects include porosity, cracking, and dimensional changes, all of which affect the performance and safety of automotive components. Focusing on the causes and finding effective solutions involves manufacturing less defects, approaching the causes of these defects, reducing costs, and helping to make products more reliable.
Casting metals shrink in three identifiable phases, each with its own complexity:
It is the primary shrinkage due to cooling of the molten metal from pouring temperature down to solidification temperature. The metal shrinks and reduces in volume when it transitions from the molten state to semi-solid state.
The metal changes phase from liquid to solid as this cooling process proceeds. This step is important because the reduction in volume can lead to voids, or cavities, if the molten metal does not fill the space left by shrinkage.
Even after solidifying, the metal keeps contracting until it reaches room temperature. Dimensional changes and internal stresses acquired in this final stage can warp or crack.
Shrinkage is influenced by various factors in automotive castings such as material properties, cooling rates, and process parameters:
The shrinkage rate differs between some metals and alloys. Aluminum shrinks with a 6% shrinkage rate approximately by volume, while other combinations were shown to have more or less shrinkage depending on the respective pores.
Temperature fluctuations increase so the material within the bottle has uneven cooling rates which can further contribute to shrinkage defects. For example, poorly designed risers or chills can fail to fill voids caused by shrinkage during metal cooling or solidification
Transitional factors such as pouring temperature, mold material, and gating system design are critical for shrinkage control. Higher pouring temperatures will enhance the shrinkage risk, while well-designed gating systems result in uniform metal feeding and cooling.
Shrinkage Effects on Automotive Components
The impact of shrinkage-related defects can be severely detrimental to automotive components:
Porosity, cracks, and also dimensional deviation are frequent defects. These defects can compromise the components' baseline structural integrity, resulting in premature the lifespan and liabilities.
Shrinkage defects lead to higher rates of rejected products, rework and production delays, resulting in increased manufacturing costs. Taking steps to solve these issues beforehand can cut down waste and increase efficiency.

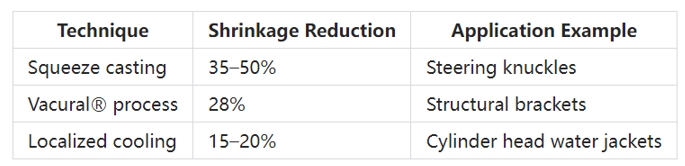

Strategies to Reduce Shrinkage in Castings in Automotive Industry.
Uniform filling of the mold ensures prevention of shrinkage cavities and can be achieved by use of appropriate risers, chills, and gating systems.
Selecting alloys that have a lower shrinkage rate or adding modifiers can minimize shrinkage. For example, many automotive castings will use aluminum alloys with silicon additives to minimize shrinkage due to casting.
The pouring temperature, cooling rate, and solidification time must be controlled to minimize shrinkage. However, advanced techniques such as simulation software can be used to anticipate and enhance these parameters.
Additive manufacturing and real-time monitoring systems offer promising innovations that can optimize casting quality through tighter process control and defect avoidance.
ArticleEngine blocks need high precision and durability Optimizing the mold design with the help of advanced simulation software allows manufacturers to improve the reliability of these crucial components while minimizing shrinkage.
Suspension components play a critical role in how your vehicle performs and are subjected to a great deal of stress and strain. Controlling shrinkage with materials selection and process control can improve the strength and performance of these parts.
New Trends in Shrinkage Control of Foundries Casting in the Automotive Industry
New alloys will be developed with the semiconductor shrinkage in mind, which will help minimize defects and maximize the performance of the components.
Real-time monitoring and control will help manufacturers identify shrinkage issues more rapidly through the depositing of specific amounts of metal at the right places, thanks to IoT and AI in casting processes.
That's a sophisticated but sane challenge in the automotive sector for cast metals. By identifying what causes it, how it manifests, and its implications, manufacturers can develop efficient solutions to reduce defects and enhance the quality of their products. Winning in a competitive landscape will require best practices, next gen technologies and keeping ahead of trends.
