What is Computer-Aided Manufacturing (CAM)？
Computer-Aided Manufacturing (CAM) refers to the use of computer software and technology to control and automate various aspects of the manufacturing process. CAM systems are designed to assist and optimize the production of physical products, ranging from simple components to complex machinery. CAM complements Computer-Aided Design (CAD) systems, which are used to create detailed digital models of products.
It includes many aspects, such as Computer Numerical Control (Computer Numerical Control, CNC), Direct Numerical Control (Direct Numerical Control, DNC), Flexible Manufacturing System (FMS), Robots, Computer-aided process design (Computer Aided Process Planning, CAPP), computer-aided testing (Computer Aided Test, CAT), computer-aided production planning (Production Planning Simulation, PPS) and computer-aided production management (Computer Aided Production). Management (Computer Aided Production Management, CAPM) and so on.
The main purpose of CAM is to streamline and improve manufacturing processes by integrating computer-generated data and instructions into various stages of production. This integration helps in achieving greater precision, efficiency, and consistency in manufacturing. CAM systems are used across a wide range of industries, including automotive, aerospace, electronics, furniture, and more.
History of Computer Aided Manufacturing
The core of computer-aided manufacturing is computer numerical control (CNC), a process or system that applies computers to the manufacturing production process.CNC milling machines were first developed at the Massachusetts Institute of Technology in the United States in 1952. CNC is characterized by program instructions encoded on perforated paper tape to control the machine tool. Since then the development of a series of CNC machine tools, including the multifunctional machine tools called "machining centers", can be automatically changed from the tool magazine and automatic conversion of the working position, can be completed in a row milling, drilling, reaming, tapping and other procedures, these are controlled by the program instructions to control the operation of the program instructions as long as the program instructions can be changed to change the machining process, CNC. This processing flexibility is called "flexible". The preparation of machining programs not only require considerable labor, and error-prone, the earliest CAM is a computer-aided machining parts programming work. Massachusetts Institute of Technology in 1950, research and development of CNC machine tools, machining parts programming language APT, which is similar to FORTRAN's high-level language. Enhanced geometric definition, tool movement and other statements, the application of APT to make writing programs become simple.
Basic Functions of Computer-Aided Manufacturing (CAM) systems:
Geometry Import: CAM software can import geometric models from Computer-Aided Design (CAD) systems. These models define the shape and dimensions of the part to be manufactured.
Toolpath Generation: CAM systems generate precise toolpaths that determine the movement of cutting tools, such as drills, mills, or lasers, over the raw material to shape it according to the design.
Tool Selection: CAM software helps choose the appropriate tools for each machining operation based on factors like material type, desired finish, and machining strategy.
Cutting Strategies: CAM systems offer various cutting strategies, such as roughing, finishing, contouring, pocketing, and drilling, to optimize material removal and achieve desired surface quality.
Speed and Feed Calculation: CAM software calculates optimal cutting speeds, feed rates, and tool rotations to ensure efficient material removal while avoiding excessive wear on the tools.
Simulation: CAM systems simulate the toolpath and machining process, allowing manufacturers to visualize how the tools interact with the material and identifying potential collisions, errors, or inefficient paths.
Material Utilization: CAM software optimizes the layout of parts within the raw material to minimize waste and material usage. This process is known as nesting.
Post-Processing: CAM systems generate machine-specific code (G-code) that guides CNC machines, robots, or other manufacturing equipment to execute the planned toolpaths.
Machine Control: CAM software communicates with manufacturing machinery, controlling movements, tool changes, and other machine-specific operations.
Quality Control: Some CAM systems include features to monitor and inspect parts during and after machining to ensure they meet design specifications.
Multi-Axis Machining: CAM software supports multi-axis machining, allowing tools to move in multiple directions, enabling more complex geometries to be manufactured.
Toolpath Optimization: CAM systems optimize toolpaths to minimize rapid tool movements, reduce vibration, and maintain consistent cutting forces, enhancing tool life and surface finish.
Toolpath Editing: CAM software provides tools to manually edit or adjust toolpaths if necessary, giving the user more control over the manufacturing process.
Toolpath Simulation: CAM systems provide detailed simulations that show the machining process step by step, aiding in process visualization and troubleshooting.
Documentation: CAM software can generate reports, documentation, and instructions for operators, detailing the machining process and tooling requirements.
Process Automation: CAM systems can automate many manual tasks involved in manufacturing, reducing the need for human intervention and minimizing the chance of errors.
Integration with CAD: The seamless integration between CAD and CAM systems enables efficient data transfer from design to manufacturing, ensuring that the final product matches the original design intent.
CAM systems can be classified based on their capabilities, complexity, and the industries they serve:
2D CAM: These systems are used for simple 2D machining operations like cutting, drilling, and engraving. They are often used in industries such as sign-making, PCB manufacturing, and sheet metal fabrication.
3D CAM: These systems support more complex 3D machining operations, enabling the creation of intricate shapes and surfaces. They find applications in industries like automotive, aerospace, and mold-making.
Multi-Axis CAM: These systems support machines with more than three axes of movement, allowing for the manufacture of complex geometries. They are common in aerospace, medical device, and turbine blade manufacturing.
High-Speed Machining (HSM) CAM: HSM CAM systems focus on optimizing toolpaths for high-speed machining, reducing machining time while maintaining quality. They are used in industries requiring rapid production, such as automotive and aerospace.
Swiss-Type Lathe CAM: Designed for Swiss-type CNC lathes, these systems specialize in precision turning and machining of small, intricate parts.

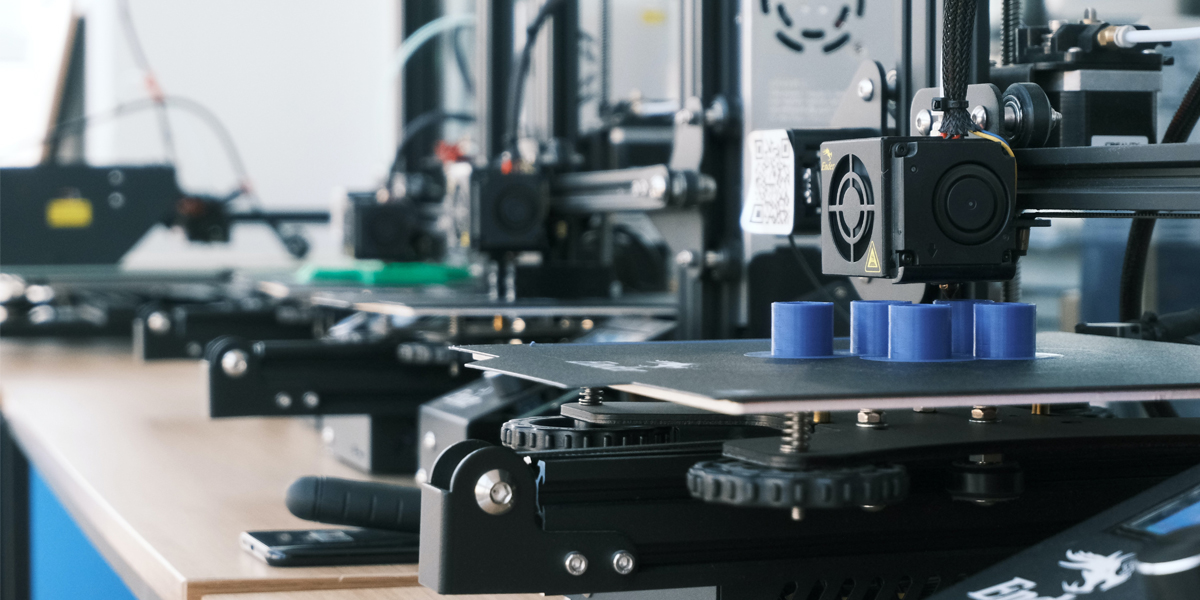

CAM for Additive Manufacturing: These systems generate toolpaths for additive manufacturing processes like 3D printing, guiding the deposition of materials layer by layer.

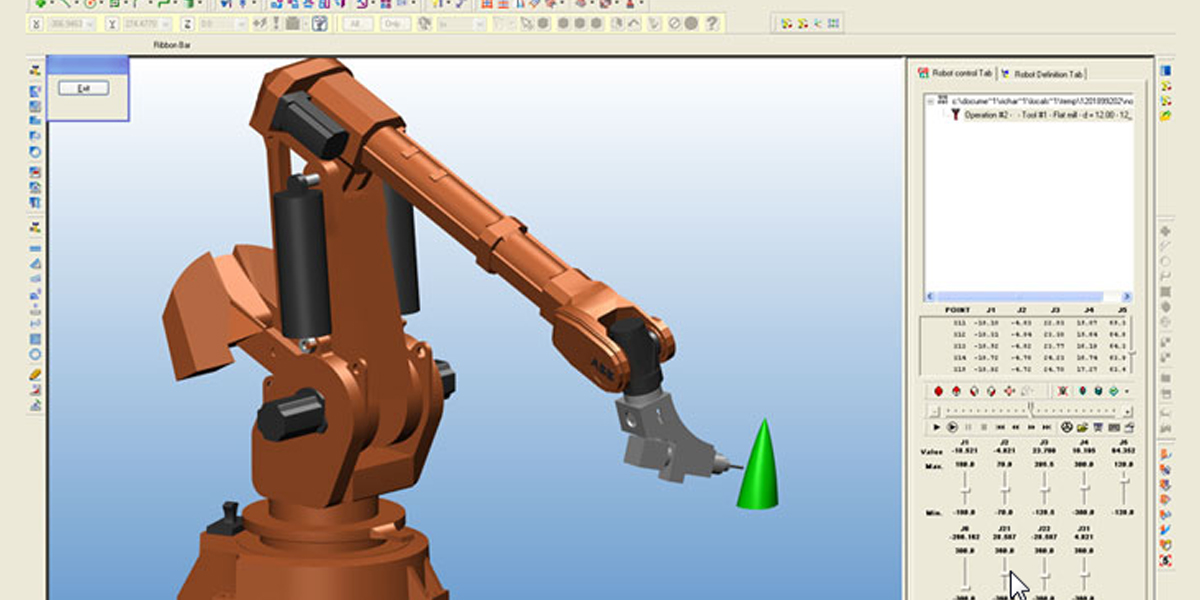

CAM for Robotics: CAM systems for robotics involve generating paths for robotic arms to perform various tasks in manufacturing, assembly, and other industries.
CAM for Woodworking and Furniture: These specialized systems cater to the needs of woodworking and furniture industries, providing tools for cutting, carving, and shaping wood materials.
CAD/CAM system can be divided into CAD, CAM, CAD/CAM .
1. CAD system: specifically for the design and the establishment of the system, can complete the design tasks, such as modeling, will figure, engineering analysis simulation and simulation, document management. Does not have CNC programming, machining simulation, production control and management.
2. CAM system: with CNC programming, machining simulation, production control and management functions, almost no modeling, will figure, engineering analysis and simulation and other functions.
3. CAD / CAM system: CAD and CAM with all the functions, and can automatically exchange information. Has become the mainstream
There are four general ways of CNC programming:
(1) manual programming;
(2) CNC language programming;
(3) CAD / CAM system programming;
(4) automatic programming.
Computer-Aided Manufacturing (CAM) offers numerous advantages that contribute to improved efficiency, precision, and quality in the manufacturing process.
Increased Efficiency: CAM systems automate various manufacturing processes, reducing the need for manual intervention. This leads to faster production cycles, shorter lead times, and increased overall productivity.
Consistency and Accuracy: CAM ensures high levels of precision and consistency in manufacturing by generating standardized toolpaths and instructions. This consistency results in fewer defects and higher-quality products.
Complex Geometries: CAM allows for the creation of complex geometries that would be challenging or impossible to achieve through manual processes. Multi-axis machining capabilities enable the production of intricate designs.
Optimized Toolpaths: CAM software optimizes toolpaths to minimize tool wear, reduce material waste, and maximize efficiency. This optimization contributes to longer tool life and cost savings.
Reduced Human Error: Automation through CAM reduces the chances of human errors that can occur during manual machining or manufacturing processes. This leads to improved product quality and reduced rework.
Virtual Testing and Simulation: CAM software offers simulation capabilities that allow manufacturers to virtually test the machining process before actual production. This helps identify potential issues and optimize the process for efficiency and safety.
Rapid Prototyping: CAM supports rapid prototyping and additive manufacturing (3D printing), enabling the quick creation of prototypes and iterative design improvements.
Customization: CAM technology enables the efficient production of customized or low-volume products, allowing manufacturers to cater to specific customer needs without incurring excessive costs.
Optimized Material Utilization: CAM systems can optimize the layout of parts within raw material sheets, minimizing waste and reducing material costs.
Time and Cost Savings: By automating processes and improving efficiency, CAM reduces production times and costs associated with labor, tooling, and material waste.
Adaptability to Industry Trends: CAM systems can adapt to emerging manufacturing technologies, such as additive manufacturing, robotics, and AI, allowing manufacturers to stay competitive and innovative.
Remote Collaboration: Cloud-based CAM systems enable remote collaboration and sharing of manufacturing data, allowing teams to work together across different locations.
Data-Driven Insights: CAM systems can provide data on machining processes, tool wear, and production trends, which can be used for process optimization and continuous improvement.
Improved Resource Management: CAM helps manage resources such as machine time, tooling, and materials more efficiently, leading to better resource utilization.
Compliance and Documentation: CAM software can generate reports, documentation, and audit trails, aiding in compliance with industry regulations and quality standards.
Application of computer-aided manufacturing
Computer-Aided Manufacturing (CAM) finds applications across a wide range of industries, helping to streamline and optimize the manufacturing process. Here are some notable applications of CAM:
Aerospace Industry: CAM is extensively used in aerospace manufacturing for precision machining of complex components such as aircraft engine parts, turbine blades, and structural components. Multi-axis machining and high-speed machining strategies are commonly employed to meet stringent quality and performance requirements.
Automotive Industry: CAM is integral to the production of automotive parts and assemblies, including engine components, transmission parts, chassis components, and body panels. CAM technologies contribute to efficient manufacturing, precise tolerances, and consistent quality.
Medical Device Manufacturing: CAM plays a vital role in producing intricate and customized medical devices like implants, surgical instruments, and prosthetics. Additive manufacturing CAM is also used for creating patient-specific implants and medical models.
Electronics Industry: CAM aids in the manufacturing of printed circuit boards (PCBs) and electronic components. It helps optimize the routing of traces, drilling holes, and placement of components on PCBs.
Metalworking and Machining: CAM is widely used in metalworking industries, including milling, turning, grinding, and sheet metal fabrication. It ensures precise manufacturing of metal parts used in various applications.
Furniture and Woodworking: CAM is employed in the woodworking industry to design and manufacture furniture, cabinets, and other wooden products. It assists in tasks like cutting, carving, and shaping wood materials.
Tool and Die Making: CAM software is used to create intricate molds, dies, and tooling for manufacturing processes like injection molding, stamping, and casting.
Jewelry Manufacturing: CAM helps in the design and production of intricate jewelry pieces, enabling precise engraving, cutting, and shaping of metals and gemstones.
Consumer Goods Manufacturing: CAM is used in the production of various consumer products, including appliances, toys, and household items, ensuring efficient and accurate manufacturing processes.
Energy and Power Generation: CAM plays a role in manufacturing components for energy and power generation, such as turbine blades, generator parts, and equipment for renewable energy sources.
Oil and Gas Industry: CAM technologies are used to produce specialized components and equipment for the oil and gas industry, including valves, pumps, and drilling tools.
Marine Industry: CAM is employed in manufacturing components for shipbuilding, including propellers, hull structures, and interior fittings.
Prototyping and Rapid Manufacturing: CAM is used in rapid prototyping and additive manufacturing (3D printing) to produce prototypes, molds, and end-use parts quickly and efficiently.
Custom Manufacturing: CAM allows for the efficient production of customized products, catering to individual customer requirements while maintaining high precision.
Robotics and Automation: CAM is used to generate paths for robots in manufacturing and assembly processes, ensuring accurate and efficient movement.
Textile and Apparel Industry: CAM assists in designing and manufacturing textiles, garments, and footwear, optimizing cutting and sewing processes.
In addition to machine tool applications, CNC is also widely used in the control of a variety of other equipment, such as stamping machines, flame or plasma arc cutting, laser beam processing, automatic plotters, welding machines, assembly machines, inspection machines, automatic knitting machines, computerized embroidery and garment cutting, etc., and has become the basis for computer-aided design in various corresponding industries.
