The 3 main types of precision machining

Release time: August 31, 2023

What are the 3 main types of  machining technologies?



The 3 main types of precision machining


Traditional Machining:

Traditional machining encompasses processes that remove material from a workpiece to achieve the desired shape and dimensions. This category includes techniques like turning, milling, drilling, grinding, and sawing. These methods involve cutting tools and equipment to shape the workpiece through the removal of material layers.



Non-Traditional Machining (NTM

) or Advanced Machining:

Non-traditional machining refers to processes that do not rely solely on mechanical cutting tools. Instead, they often use thermal, electrical, chemical, or other unconventional methods to remove material. Some examples of non-traditional machining methods include laser cutting, waterjet cutting, electrical discharge machining (EDM), electron beam machining, and ultrasonic machining.



Abrasive Machining:

Abrasive machining involves the use of abrasive particles to remove material from a workpiece. This can be done using grinding wheels, sanding belts, abrasive discs, or other abrasive tools. The abrasive particles wear away material through friction and impact, resulting in precise shaping and finishing of surfaces. Processes like grinding, honing, lapping, and polishing fall under this category.


Then what are the 3 main types of precision machining technologies?



Precision machining involves the use of specialized techniques and equipment to create highly accurate and precise parts. The three main types of precision machining technologies are:

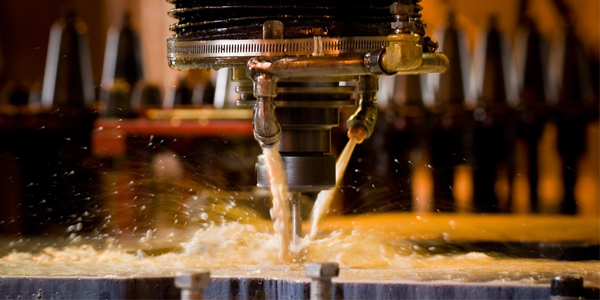

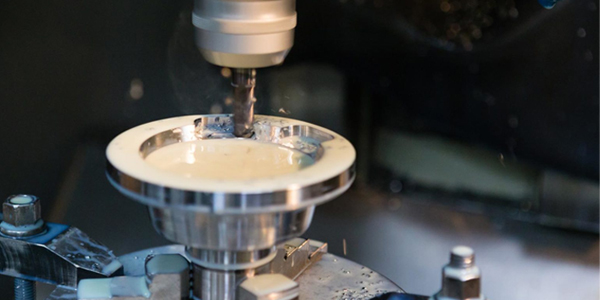

CNC Machining (Computer Numerical Control):


The 3 main types of precision machining


CNC machining is a computer-controlled manufacturing process that uses pre-programmed software to control the movement of machine tools. This allows for precise and complex machining operations with high levels of accuracy and repeatability. CNC machines can perform various operations such as milling, turning, drilling, and grinding. They are widely used in industries that require tight tolerances and intricate designs.

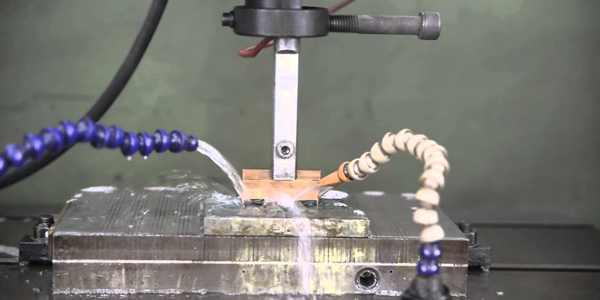

EDM (Electrical Discharge Machining):


The 3 main types of precision machining


EDM is a non-traditional machining process that uses electrical discharges to remove material from a workpiece. It involves creating a controlled spark between an electrode and the workpiece, eroding material in small increments. EDM is particularly useful for machining complex shapes and hard materials that are challenging to machine using conventional methods. It provides exceptional accuracy and surface finish.

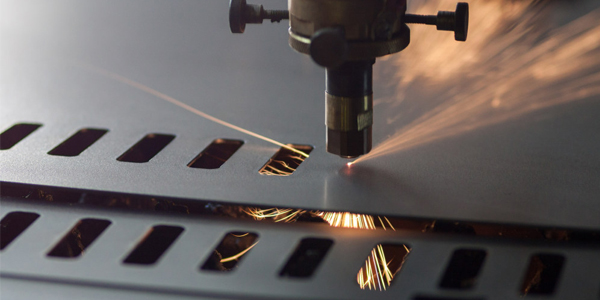

Laser Machining:


The 3 main types of precision machining


Laser machining uses focused laser beams to remove material from a workpiece. The intense heat generated by the laser vaporizes or melts the material, allowing for precise cutting, engraving, drilling, and surface modification. Laser machining is known for its high precision, minimal material waste, and the ability to work with a wide range of materials, including metals, plastics, ceramics, and composites.



These precision machining technologies are essential in industries such as aerospace, medical devices, electronics, automotive, and more, where components require exact dimensions, tight tolerances, and impeccable surface finishes.



Respective strengths



CNC Machining:



Versatility: CNC machines can perform a wide range of machining operations, including milling, turning, drilling, and grinding, making them versatile for various part geometries and materials.



Accuracy and Repeatability: CNC machining offers high levels of accuracy and repeatability, allowing for consistent production of complex parts with tight tolerances.



Customization: CNC programs can be easily modified to accommodate design changes, making it suitable for prototyping and low-volume production.



Wide Material Compatibility: CNC machines can work with a variety of materials, from metals to plastics to composites.



EDM (Electrical Discharge Machining):



Hard Materials: EDM is particularly effective for machining hard and difficult-to-machine materials, such as hardened steels, tungsten carbide, and exotic alloys.



Intricate Shapes: It excels at machining complex and intricate shapes that may be challenging to achieve with traditional methods due to its non-contact nature.



No Mechanical Stresses: EDM generates minimal mechanical stresses on the workpiece, making it suitable for delicate and fragile components.



High Surface Finish: EDM can achieve excellent surface finishes, often eliminating the need for additional finishing processes.



Laser Machining:



Precision and Speed: Laser machining offers high precision and can perform rapid material removal, making it ideal for quick prototyping and production runs.



Minimal Heat Affected Zone: Laser machining generates minimal heat, reducing the risk of material distortion or damage, which is especially important for sensitive materials.



Non-Contact Process: Like EDM, laser machining is a non-contact process, which is advantageous for delicate components and materials.



Material Diversity: Laser machining can work with a wide range of materials, including metals, ceramics, polymers, and composites, making it versatile across industries.


List of processed materials



CNC machining can work with a wide variety of materials, including but not limited to:



Metals: Aluminum, steel, stainless steel, brass, copper, titanium, etc.

Plastics: Acrylic, nylon, polycarbonate, PEEK, PVC, etc.

Composites: Carbon fiber, fiberglass, composite materials used in aerospace and automotive industries.

Ceramics: Certain types of ceramics can be machined using specialized tooling.

Wood: CNC routers are often used for woodworking applications.

Foam: Used in prototyping, signage, and architectural models.



EDM (Electrical Discharge Machining) is particularly effective for machining hard and tough materials. It can process:



Hardened Steels: Tool steels, high-speed steels, die steels, etc.

Carbide: Tungsten carbide and other hard carbide materials.

Exotic Alloys: Inconel, titanium alloys, cobalt-chromium alloys, etc.

Conductive Ceramics: Certain ceramics with high electrical conductivity.

Conductive Plastics: Plastics that can conduct electricity.



Laser machining is versatile and can work with a wide range of materials:



Metals: Ferrous metals (steel, iron), non-ferrous metals (aluminum, copper), precious metals (gold, silver), etc.

Plastics: Acrylic, polycarbonate, ABS, PET, polyethylene, etc.

Ceramics: Laser can engrave and mark certain ceramic materials.

Composites: Carbon fiber, glass fiber, reinforced plastics.

Paper and Cardboard: Used in packaging and artistic applications.



Application and industry



CNC machining is widely used across industries that require precise and complex parts. Some applications and industries include:



Aerospace: Manufacturing aircraft components, engine parts, and intricate structural elements.

Automotive: Producing engine components, transmission parts, and specialized tools.

Medical: Creating implants, surgical instruments, and medical devices with tight tolerances.

Electronics: Manufacturing PCBs (Printed Circuit Boards) and intricate electronic components.

Tool and Die Making: Producing molds, dies, and tooling for various industries.

Prototyping: Rapidly creating prototypes for product development and testing.

Custom Manufacturing: Crafting specialized parts for unique applications.



EDM is known for its ability to work with hard and complex materials. It finds applications in:



Tool and Die Making: Creating complex shapes and contours in molds and dies.

Aerospace: Machining intricate components for aerospace engines and structures.

Medical: Producing high-precision surgical tools and medical implants.

Automotive: Manufacturing specialized engine components and transmission parts.

Jewelry: Crafting intricate and detailed designs in precious metals.

Dielectric Manufacturing: Creating parts using non-conductive ceramics.



Laser machining's versatility makes it suitable for a wide range of industries and applications:



Aerospace: Cutting and engraving aerospace components, sheet metal parts, and composites.

Electronics: Precision cutting and drilling of PCBs, microelectronics, and semiconductor wafers.

Medical: Laser ablation for medical device manufacturing and precision cutting of medical tubing.

Automotive: Laser welding, cutting, and marking in automotive production.

Jewelry: Engraving and cutting intricate designs in precious metals and gemstones.

Textiles: Laser cutting fabrics, leather, and textiles for clothing and upholstery.

Art and Design: Laser engraving for artistic creations and architectural models.
