In the world of CNC machining, comprehending the differences between 3-axis, 4-axis, and 5-axis milling is essential for design optimization and manufacturing efficiency. Each milling approach brings distinct advantages, enabling designers to tailor their projects to specific needs.
Introduction:
At GD-HUB, we boast a cutting-edge array of 3-axis, 4-axis, and 5-axis milling machines. As a designer, understanding which machine suits your project can make all the difference in achieving design excellence. Let's delve into the intricacies of these machining methods and their implications for your design endeavors.
Overview: 3-axis machining serves as the foundation of CNC milling, offering cost-effective solutions for straightforward geometries.
Applications: Primarily suited for 2D and 2.5D tasks, 3-axis machining can craft intricate shapes, including planar milled profiles, drilled holes, and threaded features. Explore examples of 3-axis machining in our portfolio.
Constraints: However, it faces limitations when handling angled or compound angle features that deviate from the X-Y-Z coordinate system. Learn more about design considerations for 3-axis milling.
Overview: 4-axis machining introduces the A-axis rotation, enhancing CNC machine versatility.
Benefits: By incorporating workpiece rotation, 4-axis machining minimizes setup complexity and costs. This method excels in producing intricate profiles such as cam lobes. See our 4-axis machining examples for inspiration.
Types: There are two main types of 4-axis CNC machining: indexing and continuous. Dive into the differences between them.
Design Freedom: Designers appreciate the ability to tackle angled features, fostering innovative part design. Explore our guide on optimizing designs for 4-axis milling.

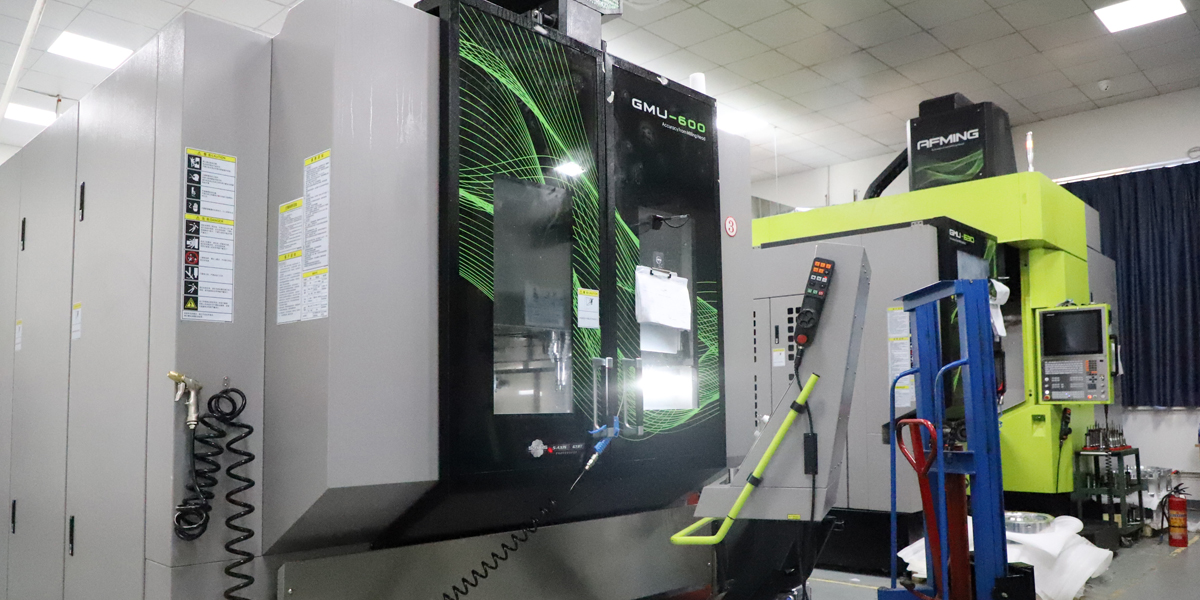

Overview: 5-axis milling machines employ two rotational axes, offering unparalleled precision and complexity.
Advantages: With 5-axis machining, you can create highly complex 3D shapes, intricate curves, and elaborate geometries. Our 5-axis machining solutions empower designers to push boundaries.
Types: There are two main types of 5-axis CNC machines: 3+2 and fully continuous 5-axis machining. Each has its unique advantages.
In 3+2 axis machining two rotational axes operate independently to each other, meaning that the workpiece can be rotated to any compound angle in relation to the cutting tool for features to be machined. However, two axes rotation at the same time as machining is not possible. 3+2 machining can produce highly complex 3D shapes. Fully continuous 5-axis machining can simultaneously rotate the two rotation axis, at the same time as machining and the cutting tool moving linearly in XYZ co-ordinates.
Continuous 5-axis machining can produce highly complex 3D shapes, not only planar compound angled features but complex curved 3D surfaces, giving us the ability to produce parts normally reserved for moulding processes.
Discover the right 5-axis approach for your project in our services section.
Design Freedom: 5-axis machining liberates designers to explore unconventional shapes and angles. It's the go-to choice for parts demanding precision and complexity. Read more about designing for 5-axis machining.
Conclusion:
In conclusion, selecting the appropriate CNC milling technique is paramount for optimizing your design and manufacturing processes. By grasping the capabilities and limitations of 3-axis, 4-axis, and 5-axis milling, you can unleash your creativity and breathe life into your most ambitious projects.
At GD-HUB, we specialize in CNC machining solutions tailored to your specific requirements. Explore our comprehensive CNC machining services to elevate your projects to the next level.
